SuperMap学习系列（三）—地图上绘制线段

2016/7/21 14:54:07 0人评论 3657 次

学习笔记，方便以后查询。

[html]view plaincopy

			<p><!DOCTYPE html>

			<html xmlns="<a target="_blank" href="http://www.w3.org/1999/xhtml">http://www.w3.org/1999/xhtml</a>">

			<head>

			    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />

			    <title></title>

			    <script src="json_parse.js"></script>

			    <script src="toJSON.js"></script>

			    <script src="libs/SuperMap.Include.js"></script>

			    <script type="text/javascript">

			        var selectStyle = {

			            fillColor: "#ffcc33",

			            strokeColor: "#ccff99",

			            strokeWidth: 2,

			            graphZIndex: 1

			        };

			        var map, layer, vectorLayer, control, selectFeature;

			        // 设置访问的GIS服务地址

			        var url = "<a target="_blank" href="http://localhost:8090/iserver/services/map-ChinaTestWorkPlace/rest/maps/ChinaTest">http://localhost:8090/iserver/services/map-ChinaTestWorkPlace/rest/maps/ChinaTest</a>";

			        function GetMap() {

			            // 创建地图对象

			            map = new SuperMap.Map("map");

			            //control = new SuperMap.Control.MousePosition();     //该控件显示鼠标移动时，所在点的地理坐标。

			            //map.addControl(control);  //添加控件

			            // 创建图层对象

			            layer = new SuperMap.Layer.TiledDynamicRESTLayer("World", url, { transparent: true, cacheEnabled: true }, { maxResolution: "auto" });

			            layer.events.on({ "layerInitialized": addLayer });

			            vectorLayer = new SuperMap.Layer.Vector();

			        }

			        // 加载图层

			        function addLayer() {

			            // 向Map添加图层

			            map.addLayers([layer, vectorLayer]);

			            map.setCenter(new SuperMap.LonLat(116.409749, 39.912344), 1);</p><p>            //添加大头针标记

			            var markerlayers = new SuperMap.Layer.Markers("Markers");

			            map.addLayer(markerlayers);

			            var marker = new SuperMap.Marker(new SuperMap.LonLat(116.409749, 39.912344));

			            markerlayers.addMarker(marker);</p><p>            //例如点击marker弹出popup

			            marker.events.on({

			                "mouseover": openInfoWin,

			                "mouseout": closeInfoWin,

			                "click": clickHandler,

			                "scope": marker   //   还不清楚这行代码是什么意思！  如果有大神赐教，我不甚感激！

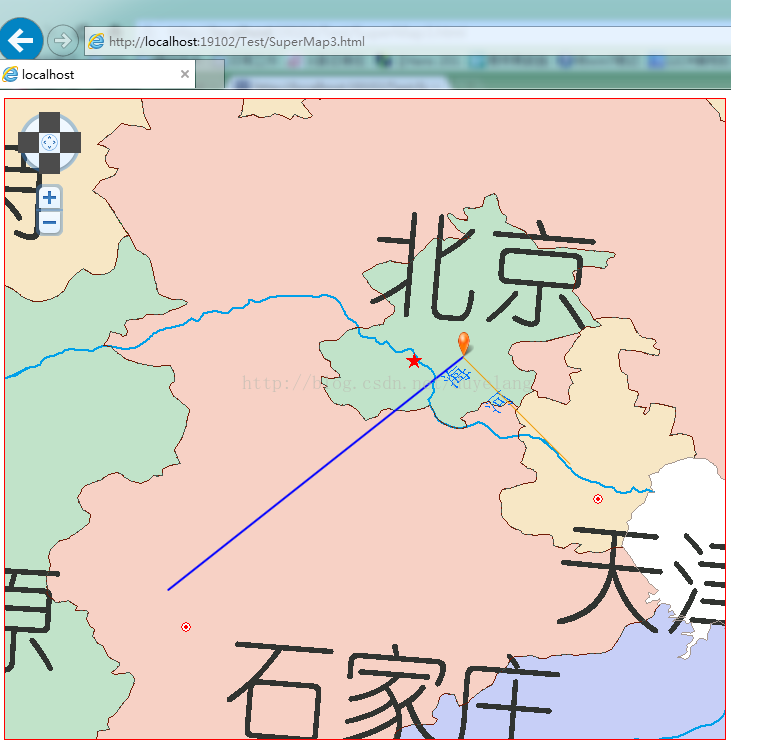

			            });</p><p>            //  添加两条线段

			            var points1 = [new SuperMap.Geometry.Point(116.409749, 39.912344), new SuperMap.Geometry.Point(114.358451, 38.29168)];

			            var points2 = [new SuperMap.Geometry.Point(116.409749, 39.912344), new SuperMap.Geometry.Point(117.155649, 39.166468)];

			            var riverLine1 = new SuperMap.Geometry.LineString(points1);

			            var riverLine2 = new SuperMap.Geometry.LineString(points2);

			            lineFeature1 = new SuperMap.Feature.Vector(riverLine1);

			            lineFeature2 = new SuperMap.Feature.Vector(riverLine2);

			            vectorLayer.addFeatures([lineFeature1, lineFeature2]);</p><p>            selectFeature = new SuperMap.Control.SelectFeature(vectorLayer, {

			                onSelect: onFeatureSelect,

			                onUnselect: onUnFeatureSelect,

			                hover: true

			            });

			            selectFeature.repeat = true;

			            selectFeature.toggle = true;

			            map.addControl(selectFeature);

			            selectFeature.activate();

			        }

			        var infowin = null;

			        function openInfoWin() {

			            closeInfoWin();

			            var marker = this;

			            var lonlat = marker.lonlat;

			            var contentHTML = "<div style='font-size:.8em; opacity: 0.8; overflow-y:hidden;'>";

			            contentHTML += "<div>Hello Word</div></div>";

			            var popup = new SuperMap.Popup.FramedCloud("popwin",

			                new SuperMap.LonLat(lonlat.lon, lonlat.lat),

			                null,

			                contentHTML,

			                null,

			                true);

			            infowin = popup;

			            map.addPopup(popup);

			        }

			        function closeInfoWin() {

			            if (infowin) {

			                try {

			                    infowin.hide();

			                    infowin.destroy();

			                }

			                catch (e) { }

			            }

			        }

			        function clickHandler() {

			            closeInfoWin();

			            var marker = this;

			            alert("Hello Word，我被点击了！");

			        }</p><p>        function onUnFeatureSelect(feature) {

			            feature.style = style;

			            vectorLayer.redraw();

			        }

			        function onFeatureSelect(feature) {

			            var f = new SuperMap.Feature.Vector;

			            f.geometry = feature.geometry.clone();

			            f.style = style;

			            vectorLayer.addFeatures(f);

			        }

			    </script>

			</head>

			<body onload="GetMap()">

			    <div id="map" style="height: 640px; width: 720px; border: 1px solid red; margin-left: auto; margin-right: auto;"></div>

			</body>

			</html>

			</p>
